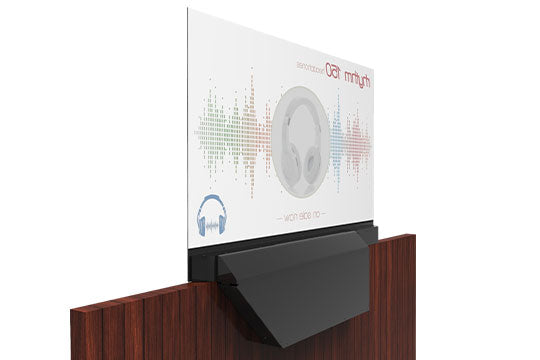

Planar LookThru LO552-SVersión de montaje recto

por Leyard
Precio original Q0.00 - Precio original Q0.00
Precio original
Q0.00
Q0.00 - Q0.00
Precio actual Q0.00

  • Con electrónica montada en línea para su integración
  • 55" en diagonal
  • Colores vivos con un 120% de rendimiento NTSC (National Television System Committee)
  • Amplios ángulos de visión sin limitaciones de contraste y brillo
  • Resolución Full HD para gráficos brillantes y vídeos en movimiento

Especificaciones

Product Name LO552 LO552-S
Planar Part Number 998-1483-00 998-1484-00
Viewable Size 55" diagonal 55" diagonal
Display Active Area 1209.6 mm (W) x 680.4mm (H) (47.6“x 26.8“) 1209.6 mm (W) x 680.4mm (H) (47.6“x 26.8“)
Display Inactive Area (Left/Right/Top/Bottom) 6.9 mm / 6.9 mm / 6.9 mm / 95.5 mm (0.3“ / 0.3“ / 0.3“ / 3.8“) 6.9 mm / 6.9 mm / 6.9 mm / 95.5 mm (0.3“ / 0.3“ / 0.3“ / 3.8“)
Aspect Ratio 16:9 16:9
Display Resolution 1920 x 1080, full HD 1920 x 1080, full HD
Display Type Active Matrix Organic Light-Emitting Diode (AMOLED) Active Matrix Organic Light-Emitting Diode (AMOLED)
Surface Treatment ERO (Extended Ruggedness and Optics) using Corning® Gorilla Glass® ERO (Extended Ruggedness and Optics) using Corning® Gorilla Glass®
Full Screen White Brightness 150 cd/m² (typ.) 150 cd/m² (typ.)
Peak White Brightness 400 cd/m² (typ.) 400 cd/m² (typ.)
Brightness, Uniformity 20% 20%
Transmissivity 38% 38%
Orientation Landscape, Portrait, Inverted (Ceiling Mount), Tabletop, Tiled Landscape, Portrait, Inverted (Ceiling Mount), Tabletop, Tiled
Viewing Angle (typ) 178° H,V 178° H,V
Contrast Ratio (typ) >100k:1 >100k:1
Response Time (typ) <1 ms <1 ms
Palette 1.073 billion colors (10-bit) 1.073 billion colors (10-bit)
Color Gamut 120% of NTSC 120% of NTSC
Pixels per inch (PPI) 40 40
Pixel Pitch 0.63 mm 0.63 mm
Frame Rate 120Hz 120Hz
Video Inputs HDMI x4, DisplayPort x1 HDMI x4, DisplayPort x1
External Connections LAN RJ45, RS232, IR, Keypad, AC Power In, USB-A, USB-B LAN RJ45, RS232, IR, Keypad, AC Power In, USB-A, USB-B
Audio Output PC Line Out, S/PDIF PC Line Out, S/PDIF
Dimensions (W x H x D) 1223.4 mm x 796.5 mm x 300.8 mm (48.2“ x 31.4“ x 11.8“) 1223.4 mm x 1029.8 mm x 134.0 mm (48.2” x 40.5” x 5.3”)
Weight 31.8 kg (70.0 lbs) 27.0 kg (59.5 lbs)
Power Requirements 100 to 240VAC 100 to 240VAC
Power Consumption (typ) 97W (<1W standby) 97W (<1W standby)
Power Consumption (max) 300W 300W
Product Approvals NRTL Listed, FCC-Class A, CE Class A, WEEE, RCM, PSE, EN60950 and CISPER22/2010, RoHS NRTL Listed, FCC-Class A, CE Class A, WEEE, RCM, PSE, EN60950 and CISPER22/2010, RoHS
Mount No No
Control and Monitoring IR, RS-232, LAN, Keypad IR, RS-232, LAN, Keypad
Operating Temperature 0º to 40ºC 0º to 40ºC
Humidity 20-95% RH non-condensing 20-95% RH non-condensing
Options / Features Fanless, optional tray. Tiling/Video Wall configurations possible through optional external processor. Standard mount. Fanless, TAA-Compliant, optional tray. Tiling/Video Wall configurations possible through optional external processor. Straight mount.
Warranty 1 year 1 year
Recommended Usage Up to 18 hours per day Up to 18 hours per day
UPC 8 10689 00708 1

8 10689 00709 8
